Chris Cutter

24" Max throat

12" and 16" throat heights available

96" Max width

48", 60", 72" or 84" options available

350 Tons

Standard Cutting Force

2" Equalization

per tooth on top and bottom jaws

No Stone Un-Chopped

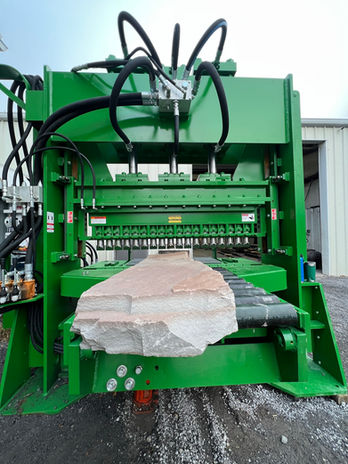

The Chris Cutter is designed to do one thing, and that's cut stone, regardless of size. With available throat heights up to 24" and widths up to 8 feet, the Chris Cutter is built to handle anything your quarry digs up.

SLABS

Chris Cutters can efficiently process large slabs

PRECISE

Smaller cutters can cut pieces to your exact needs

ODD ROCKS

The design of the Chris Cutter allows it to cut any shape of rock

SLABS

Chris Cutters can efficiently process large slabs

1/4

FANCY LOOKING COMPUTER STUFF 1_edited_ed

THROAT HEIGHTS

Standard sizes include 12", 16", & 24"

THROAT WIDTHS

Standard sizes include 48", 60", 72", 84" & 96"

Unstoppable Force

What happens when an unstoppable force meets an immovable object? When that force is the 350 tons of cutting power in your Chris Cutter jaws, the answer is simple, big rocks become little rocks.

Additional Packages

24" width Single Cylinder - 70 tons
36" width Single Cylinder - 150 tons
36" width Twin Cylinder - 300 tons
Custom Machines up to 600 tons

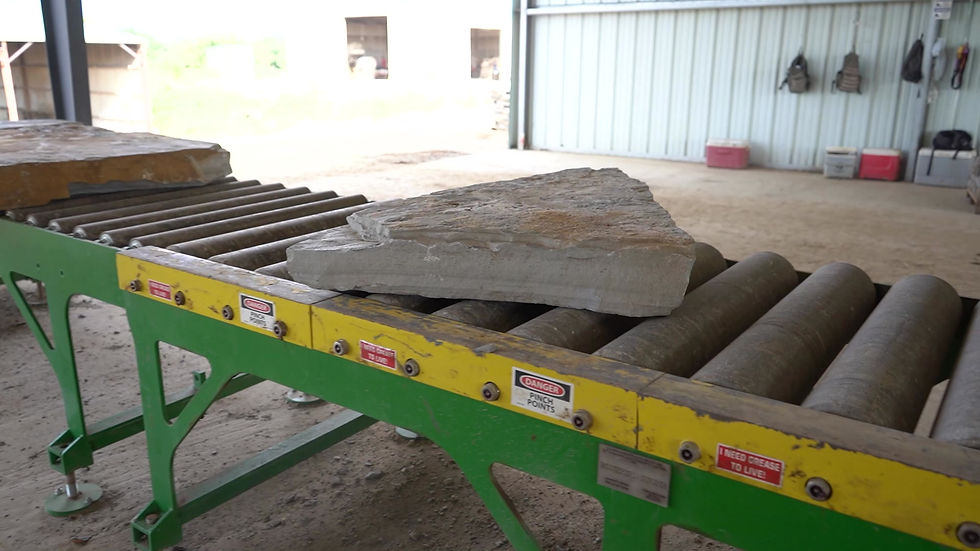

Powered Roller Tables

The perfect compliment to any Chris Cutter. Our Powered Roller Tables feed perfectly into the built in tables on the Chris Cutter. These 10' long powered tables allow rock to be staged in front of the jaws allowing your cutting crew to move seamlessly from one slab to the next. The table is easily controlled from the same control valve that operates the rest of the cutter and features a turn table to help manipulate the rock into position for Chris Cutter.

CHAIN DRIVEN

Hydraulicly driven chains turn the rollers, allowing easy movement of large slabs

TURN-TABLE

A central turn table allows the operator to rotate slabs before they enter the jaws

INTEGRATED

Connected to the same lever box that runs the chopper, the table works seamlessly with your cutter

TOUGH TEETH

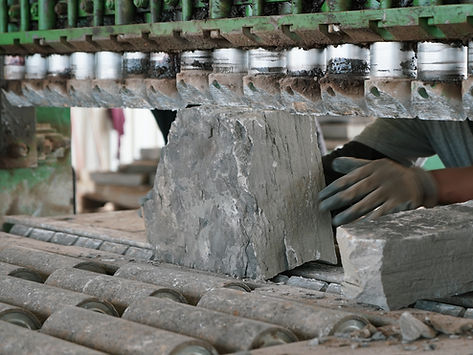

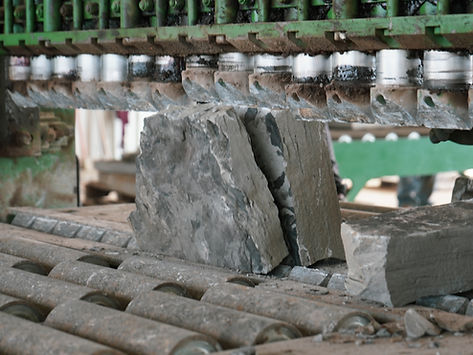

Available in 2.25" and 3" diameters, and as a solid piece of tool steel or featuring a carbide insert, our cutting teeth make the Chris Cutter unique. Each tooth free floats inside the jaw assembly allowing them to conform to the face of the rock. Once in place, the operator need only hydraulicly lock the teeth in place and let the Chris Cutter do its thing.
